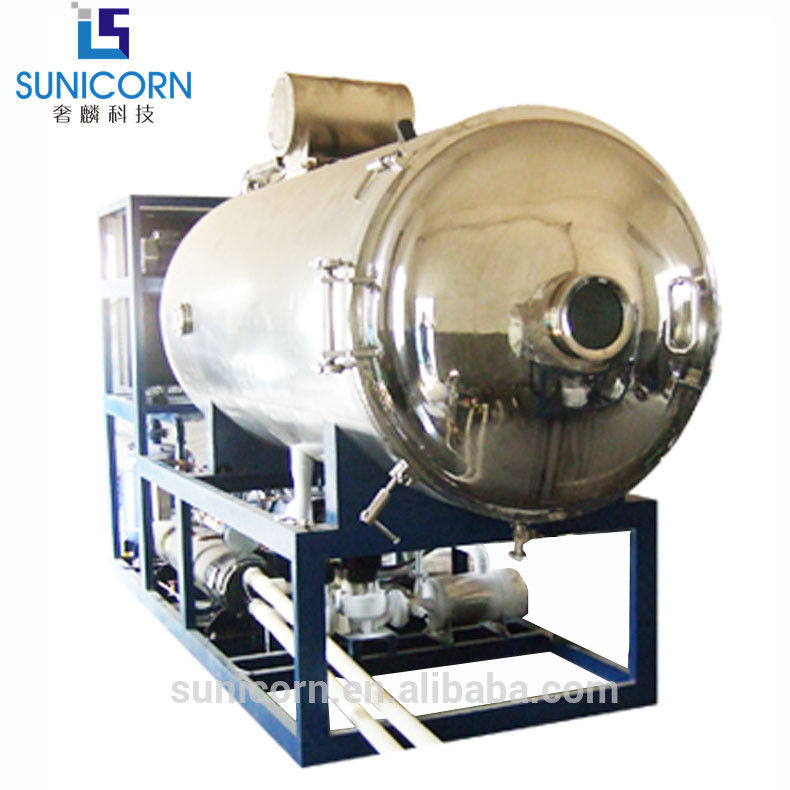

High Safety Commercial Lyophilizer 5sqm Excellent Temperature Control

China High Safety Commercial Lyophilizer 5sqm Excellent Temperature Control supplier

Large Image :  High Safety Commercial Lyophilizer 5sqm Excellent Temperature Control

Product Details:

Place of Origin: Guangdong, China
Brand Name: suynicorn
Certification: CE Certificate
Model Number: SFD-100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Sea worthy packing for 5sqm china commercial vacuum dehydrator for fruit, vacuum freeze dryer
Supply Ability: 10 Set/Sets per Month 5sqm china commercial vacuum dehydrator for fruit, vacuum freeze
Contact Now
Detailed Product Description
Condition: New Type: Freeze Drying Equipment
Voltage: 380V/50HZ/3P Power(W): 33Kw
Dimension(L*W*H): 4540*1400*2451mm Weight: 3800KG
Application: Root Vegetables,fruit Function: Drying Food
Material: 304 Stainless Steel Effective Drying Plank Area: 10 Square Meters
Compressor: Bizter Vacuum Pump: Leybold
Condensator's Water-catching Weight: 120kg Max Working Vacuum Pressure: 10Pa
Product Name: 10sqm Industrial Vacuum Food Freeze Dryer For Food After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: 1 Year Port: Shenzhen
High Light:

commercial freeze drying machine

,

commercial lyophilizer

10sqm industrial vacuum food freeze dryer for food





Sunicorn Technology freeze-drying technology advantages:

1. has applied for white fungus freeze-dried technology patent;

2. The use of imported fully enclosed refrigeration unit, low temperature, water catching ability, efficient and reliable, low noise;

3. The use of air-cooled way to heat, without water cooling;

4. After the product freeze-dried volume, the shape of the basic unchanged, the material was dry powder state, no shrinkage;

5. In the freeze-drying process, the growth of microorganisms and the role of enzymes can not be carried out, so to maintain the original shape;

6. Patent design guide tube, to improve the effective area of cold trap, rapid freeze-drying;

7. Original imported inflatable valve, can be filled with dry nitrogen or inert gas;

8. International standard vacuum interface, can be used in conjunction with a variety of vacuum pumps;

9. Specially design for stainless steel shelving, plate spacing adjustable and the number of free set;

10. The fresh of product is unchanged and good rehydration;

11. Using PLC automatic programming control system, high automation level, greatly reduce the manpower cost;



The Vacuum Freeze Dryer of Sunicorn Technology has a mature manufacturing process, excellent temperature control technology, the limit of ultra-low temperature, widely used in food, pharmaceutical and other fields.

Chamber: chamber design in accordance with GB150-2011 / PED / ASME standards, in line with FDA and GMP standards, the chamber with a large fillet interior design, the chamber is designed to use the tilt angle, more in line with CIP and SIP drainage requirements. Chamber can withstand 0.15MPA to 0.5PA full range of positive and negative pressure.

Plate: the use of the international advanced welding process manufacturing;

Cold trap: the use of stainless steel, beautiful and corrosion resistance, cold trap opening large with pre-frozen function,The optimal design of water vapor channel makes the molecular surge resistance smaller and the water capture efficiency higher;

Refrigeration system: the use of German compressor, refrigeration system safe and stable;

Vacuum system: vacuum pipe with automatic rail welding, to ensure a solid and beautiful welding, vacuum leak detection using helium mass spectrometry detector to ensure that the vacuum system to achieve high vacuum requirements.

Control system: selection of internationally renowned brand components, PLC control system, high reliability,powerful, both in the local operation, but also remote control and monitoring.



About us

Sunicorn headquarter is located in Shenzhen city, production and R&D team is located in Shenzhen city and Kunming city in Yunnan province.Our main products include all kinds of vacuum cooler, cold storage room,freeze dryer etc.Company in the production of vacuum pro-cooling equipment, large cold storage, refrigeration equipment has been successfully applied in 12 provinces of China and other professional engaged in the preservation of circulation and food processing industry, a well-known enterprises, and has exported to Malaysia, Singapore, Thailand, the United States, Mexico, Eastern Europe and other places.And in the United States, California, Florida and other places set up a firm and after-sales service center. At any time to provide users with convenient and efficient technical advice, maintenance and domestic and foreign parts supply.





10sqm industrial vacuum food freeze dryer for food

10sqm industrial vacuum food freeze dryer for food

10sqm industrial vacuum food freeze dryer for food

10sqm industrial vacuum food freeze dryer for food
